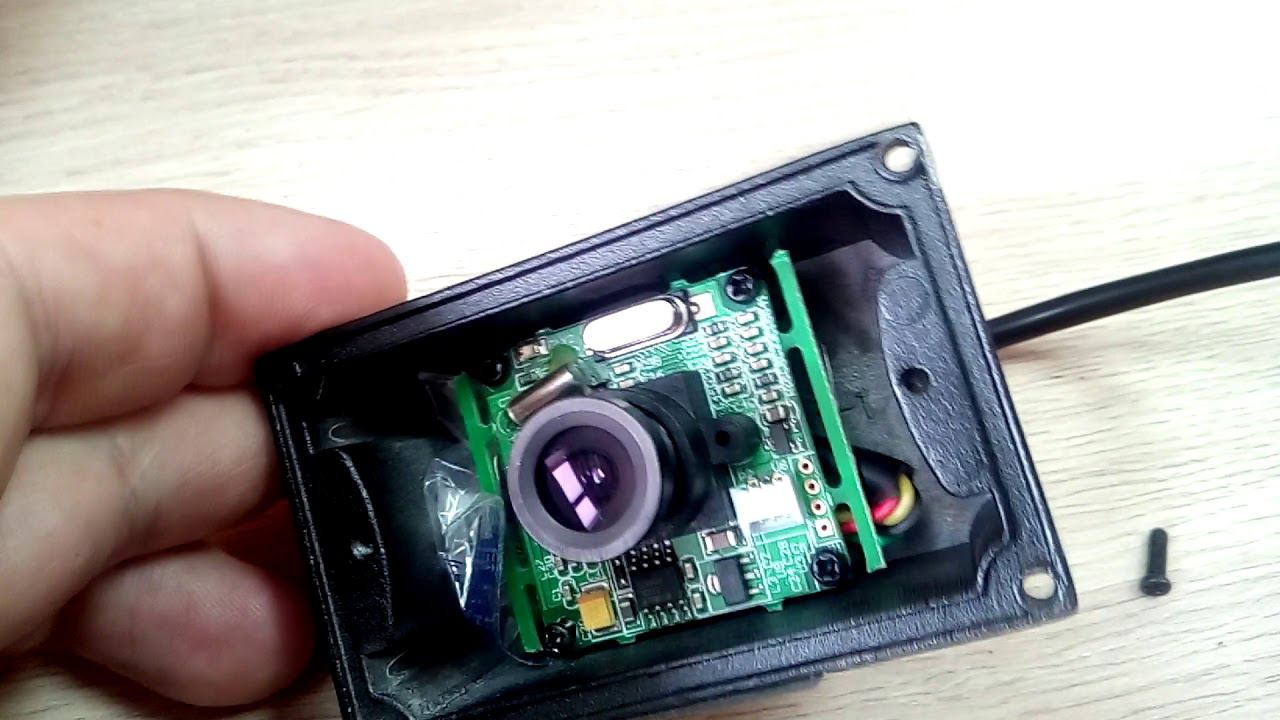

Разбор фотокамеры ZM-CAM-FST производства QQZM
410017505703275 ЯНДЕКС.ДЕНЬГИ На развитие канала и покупку материалов Item No.: ZM-CAM30-FST Camera Image Sensor 1/4'' CMOS Progressive Scan Sensor Effective Pixel (H×V) 640 × 480 (480p) Sensor Performance AWB, AGC, BLC, AEC Shutter 1/50(1/60)s ~1/100,000 s S/N Ratio 50dB Dynamic Range 60 dB IR Led Ф5mm 18 850-IR Leds / Ф5mm 18 940-IR Leds Night Vision 5m Minimum Illumination Inquiry Cart | Sign In or Sign Up Search Home About Us Products Brand News Support Contact Us Inquiry Henry Candice Alona Henry Candice Alona QQZM TOP PDFmyURL easily turns web pages and even entire websites into PDF! 5Lux @ (F1.2,AGC ON), 1 LUX with IR Lens Lens Type 850 IR Lens / 940 IR Lens Focus 2.8 / 3.6 / 6mm Iris F=1.2 Angular Field of View (D/H/V) 90°/70°/55°(3.6MM for Instance) Focus Control Fixed Vision Distance 12m-15m (3.6MM for instance) Image Resolution VGA (640*480) / QVGA(320*240) /QQVGA(160*120) Compression JPEG Compression Serial Port Serial Interface RS-232 / RS-485 / TTL Camera ID Default "0" Protocol ZMID / VC0706 / OV528 Baud Rate 2400bps-115200bps Power Power Supply DC-5V / 9-36V Working Current Draw IR Off: 130-150mA; IR ON: 350-360mA Cable & Connector Cable Type Shielded / Non-shielded Cable Cable Length 3 Meters / Customization Connector DB9 Female or Customization Pin Description PIN 1: DC+5V (Red Wire) PIN 2: TxD (Green Wire) PIN 3: RxD ( Yellow Wire) PIN 5: GND (Black Wire) Environment Operate Temperature -20 °C ~70 °C (-4°F`158°F) Operate Humidity 10%·85% Non-condensing Storage Temperature -25 °C ~80 °C (-13°F`176°F) Storage Humidity 0%`90% Non-condensing Physical Index Net Weight (kg) 0.35 PDFmyURL easily turns web pages and even entire websites into PDF! Review Product Size (mm) Φ92*66 Gross Weight (kg) 0.4 Gift box size (mm) 11(L)*11(W)*10(H) Certification CE, FCC, ROHS Warranty 12 Months
