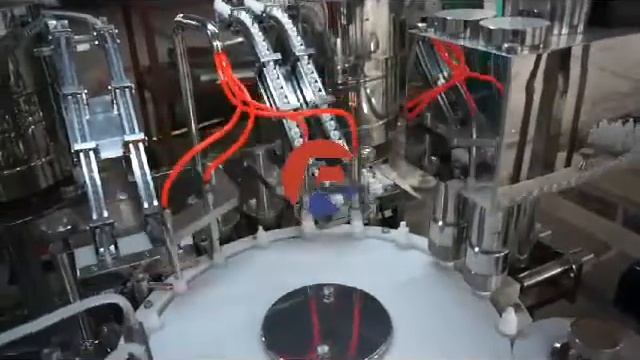

Monoblock filling capping machine for Aseptic reagent test kit - RELIANCE MACHINERY
Learn more:https://www.pharma-reliance.com/Filling-Machine Monoblock filling capping machine for Aseptic reagent test kit - Reliance machinery company from China. Get more details: info@pharma-reliance.com Reliance Model RVF series is a modular machine specially designed for the packaging of food, pharmaceutical, chemicals and supplement. Liquids dosing or filling systems for liquids can be integrated. The two-lane solution for stable, self supporting containers can flexibly fill liquid into formats ranging from cylindrical bottles to canisters. The piston pump flow filling system is installed on a mobile filling trolley, which allows quick product changeovers while reliably preventing cross-contamination. Additional functions such as handling processes, capping, rising and flushing, inspection and more can be integrated. The highly accessible system with explosion protection can also be equipped with a CIP unit as clients required. 1. Liquid Filling system: →Filling process in protective gas for reduced oxygen contents in the packaging →Suction nozzles or suction bell for reduced dust emergence during filling →Filling systems coordinated to the product →Freely programmable filling nozzle movement and filling speed for below/over or bottom-up filling ( suit for foaming liquids, such as cough syrup) →Filling station on the module trolley for a quick change and separate cleaning →Hot filling possible ( 55 ℃ ) →Multi-component filling with different volumes →Agitator systems for preventing product separation →Synchronization interface for the bottling plant, the parameters can be setting from touch screen →peristaltic pump filling or piston pump dosing →Alternative volumetric or gravimetric positioning →High-precision portioning for constant filling volume →Precise topping-up for small amounts for reducing the amount of product loss →Dosing amount adjustment: freely programmable, adjustable intake and dosing time, adjustable return suction Shapes →User-friendly, fast and primarily tool-free format change →Fully or semi-automated format change Design →Can be designed as a monobloc combination with filling and capping Simple assembly (plug and dropper caps) - low installation costs →Explosion protection model for the alcohol liquids →Good visibility and accessibility →Flushing the rear area of the piston →Compact design with low space requirement →Multi-location working stations for high output →Min./max. Sensors for jam detection upstream and downstream of the machine →Modular machine design for maximum flexibility for future adaptations of products, packaging or functions →Products in contact with metal parts made of stainless steel and/or food-grade plastic →Secure and sturdy mechanical system →Few moving parts resulting in minimized sealing and maintenance costs Drive system: →Drive via wear-free servomotors as optional →Torque controlled shut-off via sliding clutch, magnetic coupling or servo Precise compliance with the torque specification using the slipping clutch or permanent magnet coupling →Screw spindle with adjustable speed Manufacture/Closing →Positioning the caps manually for semi-automatic processes →Simple integration into existing packaging technologies →Process-reliable sealing using thermal sealing, induction or ultrasound →Processing all standard types of caps →Processing packaging material from the stack →Processing packaging material from the role →Fully automatic processing of folding boxes and inliners via the magazine →Cut-out erector for erecting and gluing cut-outs that can be folded Cleaning →Hygienic design for reliable production and easy cleaning →Cleaning the system with liquids, no carry-over into the machine base due to the sealed, sloped machine plate →Parts in contact with the product that are removable and are able to be cleaned with water for thorough cleaning →Cleaning the product-carrying components (CIP/SIP) as optional. Handling →Simple, clearly arranged operation and graphic display of the machine status on the HMI →HMI that can be moved linearly for optimal machine access and flexible operation Transport →No carry-over due to the transport system if the container is leaking or cleaning the system with liquids →Quality Management →Diverse monitoring functions using sensors or camera systems for quality assurance →Product savings through continuously monitoring the average and self-optimization →Quality assurance via suitable monitoring functions →Low-maintenance operation via mechanical cam control
