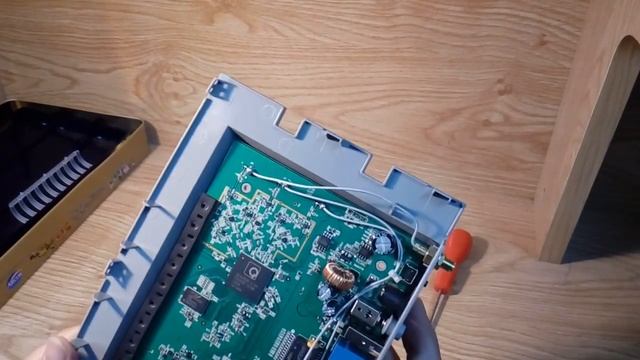

How to unbricked/debricked TP-LINK TL-WR1043ND V2.1 part 1 open router
Please subscribe for more useful videos about FREE Internet and WiFi Marketing http://goo.gl/uBXhYY --~-- Here is how to unbrick your tplink TL-WR1043ND (and possibly others too) First you will need to download and install putty and tftpd32 server putty: http://www.chiark.greenend.org.uk/~sgta … nload.html TFTPD32: http://tftpd32.jounin.net/tftpd32_download.html Alternate to putty Termite: http://www.compuphase.com/software_termite.htm next you will need to find a USB to TTL cable lots on ebay. To understand how to open your router, follow the excellent guide on the OpenWRT wiki: http://wiki.openwrt.org/toh/tp-link/tl- … .the.case. Once you have your cable and opened your router refer to this picture to locate and connect the cable correctly http://wiki.openwrt.org/_media/inbox/wr1043ndserial.jpg REMEMBER TO REVERSE THE Tx and Rx with your cable !!! IMPORTANT !!! NOTE: I didn't use the VCC connection only the GND Tx and Rx if you use the VCC use +3.3v connection Once you have hooked up your cable correctly follow these instructions and you will be fine. 1. Download the sysupgrade firmware. (/use latest build/ar71xx/generic/openwrt-ar71xx-generic-tl-wr1043nd-v1-squashfs-sysupgrade.bin) You can download the latest firmware from here http://downloads.openwrt.org/attitude_adjustment/ 2. Gain access to the serial port and hook it up to your computer using RS-232 / USB -- TTL adapter. 3. Run Putty, setup Serial connection, set COM port appropiately to your adapter in step 2 and do not click Open yet (baud rate: 115200 8N1 and set Flow Control to None) 4. set networkcard of computer to ip address: 192.168.0.5 , subnetmask 255.255.255.0 and no gateway 5. Run TFTP32 server on your computer, connect computer with ethernet cable to LAN switch port on router. 6. Make sure the "Current Directory" in TFTP32 is set to folder with modified original firmware renamed to "code.bin" 7. In Putty, click open and plug in Power cord to router... you should see bootloader coming up now... 8. You will see something like this: No valid address in Flash. Using fixed address : cfg1 0xf cfg2 0x7114 eth0 up eth0 Autobooting in 1 seconds## Booting image bf0200000... Then type following fast: tpl Now you will get into the command prompt and you're able to execute commands. 9. Erase the firmware before writing it again using following command: erase 0xbf020000 +7c0000 10. Download new modified original firmware from computer to the router: tftpboot 0x81000000 code.bin 11. Write the downloaded firmware to flash using: cp.b 0x81000000 0xbf020000 0x7c0000 12. Boot the original firmware again: bootm 0xbf020000 13. Let the router finish booting up and wait for everything to stop loading 14. push ctrl + c than hit enter and now you should see the openwrt login screen Your router should be unbricked again! Please subscribe and find how to do #WiFiMarketing DIY Wi-Fi router long range antenna, RAM, flash and turn on social WiFi marketing with OpenWrt captive portal to boost your business using wireless LAN High gain 9 dBi dual band wifi antenna VS original TP-LINK routers https://www.youtube.com/watch?v=yqtpkVea1_M WiFi antenna hack 5dBi to 16dBi long range outdoor TP-Link router https://www.youtube.com/watch?v=ytgQW49P0GE Display wirelessly to TV using AnyCast M2 Plus Mini Wi-Fi Display Dongle Receiver https://www.youtube.com/watch?v=gCr1tEWREk8 Out door long range WiFi router mod Tp-Link TL-WR841N hack lightning protection https://www.youtube.com/watch?v=wSAyS8WCIZY Copy eprom flash chip to chip without computer ezp2010 copy tools https://www.youtube.com/watch?v=UZsbB7E0YjE #WiFiRouter #AntennaWiFi #DIYWiFi #OpenWRT #WirelessLAN
